ORION

Vibration monitoring terminal

ORION is the new addition to the 01dB monitoring range, covering all vibrations created by human activity. Taking the best features from CUBE and ORION offers unique features for vibration monitoring.

Features

Orion the ultimate vibration monitor, standards based, powerful and easy to use


ROBUST

Strong casing IP65 waterproof level

multi channel.jpg

MULTI-CHANNELS

3 internal vibrations channels,

3 external channels


ALWAYS CONNECTED

3G Modem, Wi-FI, Ethernet, GPS, advanced push mode


HARD WEARING

Robust connectors, strong casing IP65waterproof level, battery lifetime of 30 hours


METROLOGICAL

5 integrated standards: including BS 6472 and BS 5228-4


DESIGNED TO PROTECT

Buildings protection and occupants protection

easy configure.jpg

EASY TO CONFIGURE

QR Code, Mobile app, Web interface


EASY TO INSTALL

Horizontally or vertically mounted, automatic start-up measurements


INTEGRATED TO THE ACOEM ECOSYSTEM

dBtrait and Acoem services compatible

Main features

01dB ORION WebInterface 1.png
Orion_8_-_Metrological_perfection (1).webp

New standards: ISO 2631-2:1989 and ISO 2631-2:2003

Two new standards – ISO 2631-2:1989 and ISO 2631-2:2003 – released for ORION’s Occupants module (BS 6472-1 and DIN 4150-2 already available) The following indicators can now be measured:

ISO 2631-2:1989

Aw(k): weighted rms acceleration per axis (k)
AwPeak(k): weighted peak acceleration per axis (k)
AvTj: weighted acceleration of the three axes combined
A*Tj(k): recomposed acceleration between ⅓ octave F1 and ⅓ octave F2, per axis (k)
Weighted rms acceleration ⅓ octave spectrum, per axis (k)
Weighted acceleration ⅓ octave spectrum of the three axes combined
ISO 2631-2:2003

Aw(k): weighted rms acceleration (Wm) per axis (k)
AwPeak(k): weighted peak acceleration (Wm) per axis (k)
VDVTj(k): vibration dose value per axis (k)
MTVVTj(k): maximum transient vibration per axis (k)
Peak factor

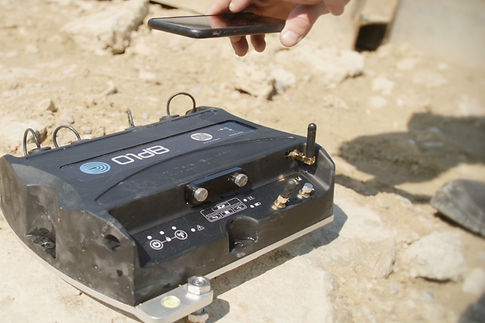

Easy to configure

Designed to improve productivity in the field, the ORION system is easy to install and use:

  • can be mounted horizontally or vertically

  • spirit level

  • automatic start-up of measurements

  • QR code to log on

  • iOS, Android and Windows mobile apps

  • web interface

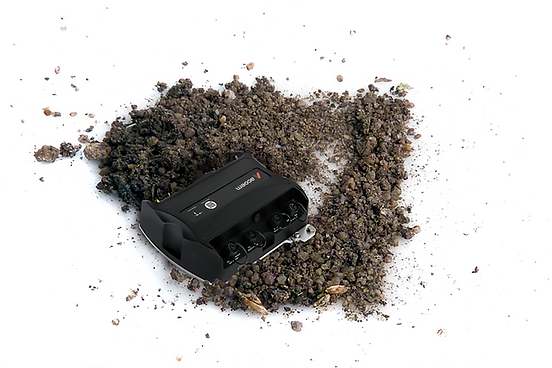

Robust and hard-wearing

Perfectly suited to use on site, ORION has been designed to cope with the most extreme of conditions:

  • strong casing

  • waterproof to IP65

  • robust connectors

  • battery life of 30 hours

Acoem ecosystem

The Acoem ecosystem is all about synergy between the products in its new range. ORION, FUSIONCUBE: 4 units, 4 fiels of application but one single ecosystem focused on improving your productivity. To this end, they all operate in the same way with respect to the integrated keyboard and Web interface. They use identical data processing software. And they all share the same accessories.
These complementary and innovation-packed systems offer harmonized and intuitive interfaces so as to ensure major time-savings for users.

Metrological perfection

As with all the products in the range, 01dB guarantees that ORION will provide reliable and efficient measurements:

  • Three internal vibration channels + three external vibration channels

  • One microphone overpressure channel

  • Smart configuration and alarm thresholds in accordance with applicable standards:

  • Protection of buildings

  • DIN 4150-3

  • CIR 23/07/1986

  • AM 22/09/1994

  • BS 5228-4

  • BS 5228-2

  • BS 7385-2

  • Protection of occupants

  • DIN 4150-3

  • ISO 2631-2:1989

  • ISO 2631-2:1989

  • BS 6472-1

  • Free mode based on PPV/DF Free mode based on spectrum envelope and/or Aw

Applications

ORION is the most complete vibration monitoring station on the market. Vibrations can be monitored, evaluated and analyzed in many situations:

  • demolition sites

  • construction sites

  • pile driving

  • explosions (mines, tunnels, etc.)

  • tunneling

  • transport (road, rail)

Connected 24h

Also with the aim of improving productivity and efficiency in the field, ORION is a hyperconnected monitoring terminal: 3G modem, Wi-Fi access point, ethernet, GPS, advanced push mode, HTTP commands for integrators.
